Electric Field Lines: Multiple Charges
By the end of this section, you will be able to:
Drawings using lines to represent electric fields around charged objects are very useful in visualizing field strength and direction. Since the electric field has both magnitude and direction, it is a vector. Like all vectors, the electric field can be represented by an arrow that has length proportional to its magnitude and that points in the correct direction. (We have used arrows extensively to represent force vectors, for example.)
Figure 1 shows two pictorial representations of the same electric field created by a positive point charge \(Q\). Figure 1 (b) shows the standard representation using continuous lines. Figure 1 (a) shows numerous individual arrows with each arrow representing the force on a test charge \(q\). Field lines are essentially a map of infinitesimal force vectors.

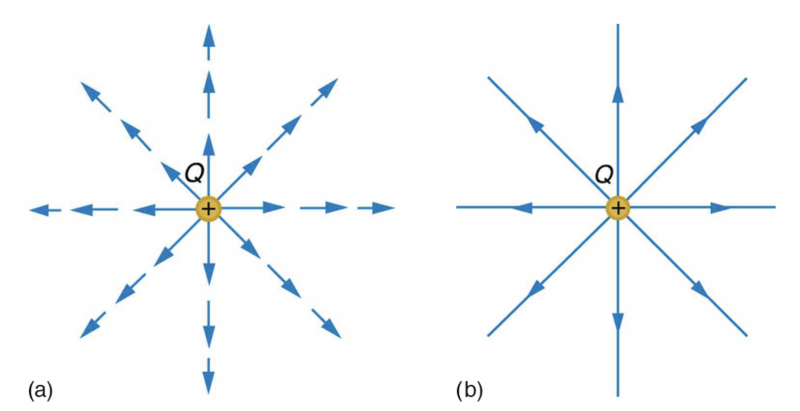

Figure 1 Two equivalent representations of the electric field due to a positive charge \(Q\). (a) Arrows representing the electric field's magnitude and direction. (b) In the standard representation, the arrows are replaced by continuous field lines having the same direction at any point as the electric field. The closeness of the lines is directly related to the strength of the electric field. A test charge placed anywhere will feel a force in the direction of the field line; this force will have a strength proportional to the density of the lines (being greater near the charge, for example).
Note that the electric field is defined for a positive test charge \(q\), so that the field lines point away from a positive charge and toward a negative charge. (See Figure 2 .) The electric field strength is exactly proportional to the number of field lines per unit area, since the magnitude of the electric field for a point charge is \(E = k |Q|/r^2\) and area is proportional to \(r^2\). This pictorial representation, in which field lines represent the direction and their closeness (that is, their areal density or the number of lines crossing a unit area) represents strength, is used for all fields: electrostatic, gravitational, magnetic, and others.

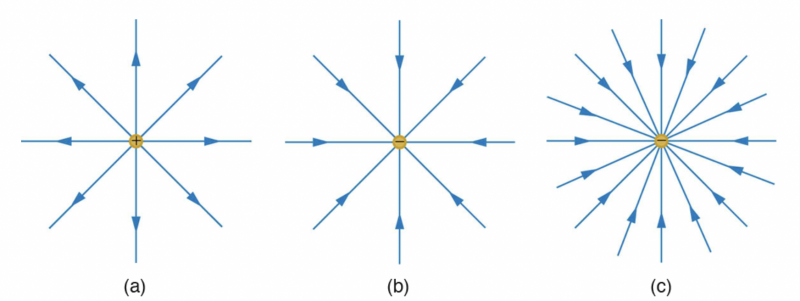

Figure 2 The electric field surrounding three different point charges. (a) A positive charge. (b) A negative charge of equal magnitude. (c) A larger negative charge.
In many situations, there are multiple charges. The total electric field created by multiple charges is the vector sum of the individual fields created by each charge. The following example shows how to add electric field vectors.

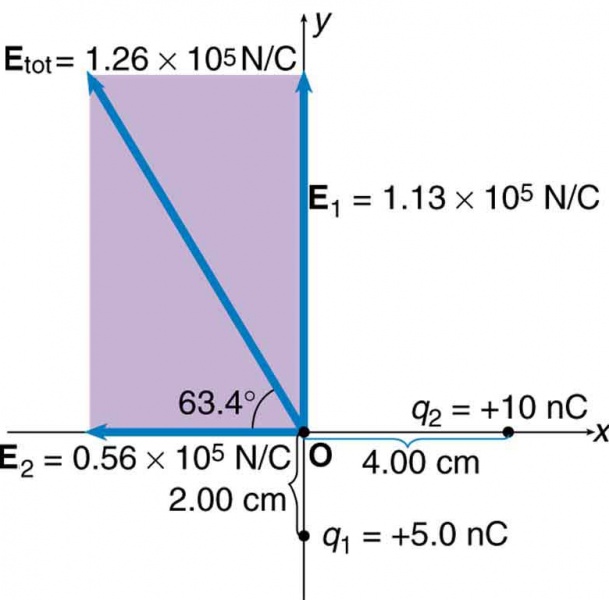

Find the magnitude and direction of the total electric field due to the two point charges, \(q_{1}\) and \(q_{2}\), at the origin of the coordinate system as shown in Figure 3.
Strategy
Since the electric field is a vector (having magnitude and direction), we add electric fields with the same vector techniques used for other types of vectors. We first must find the electric field due to each charge at the point of interest, which is the origin of the coordinate system (O) in this instance. We pretend that there is a positive test charge, \(q\), at point O, which allows us to determine the direction of the fields \(\mathbf{E}_{1}\) and \(\mathbf{E}_{2}\). Once those fields are found, the total field can be determined using vector addition.
Solution
The electric field strength at the origin due to \(q_{1}\) is labeled \(E_{1}\) and is calculated:
Similarly, \(E_{2}\) is
Four digits have been retained in this solution to illustrate that \(E_{1}\) is exactly twice the magnitude of \(E_{2}\). Now arrows are drawn to represent the magnitudes and directions of \(\mathbf{E}_{1}\) and \(\mathbf{E}_{2}\). (See Figure 3.) The direction of the electric field is that of the force on a positive charge so both arrows point directly away from the positive charges that create them. The arrow for \(\mathbf{E}_{1}\) is exactly twice the length of that for \(\mathbf{E}_{2}\). The arrows form a right triangle in this case and can be added using the Pythagorean theorem. The magnitude of the total field \(E_{\mathrm{tot}}\) is
The direction is
or \(= 63.4^\circ \) above the x-axis.
Discussion
In cases where the electric field vectors to be added are not perpendicular, vector components or graphical techniques can be used. The total electric field found in this example is the total electric field at only one point in space. To find the total electric field due to these two charges over an entire region, the same technique must be repeated for each point in the region. This impossibly lengthy task (there are an infinite number of points in space) can be avoided by calculating the total field at representative points and using some of the unifying features noted next.
Figure 4 shows how the electric field from two point charges can be drawn by finding the total field at representative points and drawing electric field lines consistent with those points. While the electric fields from multiple charges are more complex than those of single charges, some simple features are easily noticed.
For example, the field is weaker between like charges, as shown by the lines being farther apart in that region. (This is because the fields from each charge exert opposing forces on any charge placed between them.) (See Figure 4 and Figure 5(a).) Furthermore, at a great distance from two like charges, the field becomes identical to the field from a single, larger charge.
Figure 5(b) shows the electric field of two unlike charges.
As the two unlike charges are also equal in magnitude, the pair of charges is also known as an electric dipole.
The field is stronger between the charges. In that region, the fields from each charge are in the same direction, and so their strengths add. The field of two unlike charges is weak at large distances, because the fields of the individual charges are in opposite directions and so their strengths subtract. At very large distances, the field of two unlike charges looks like that of a smaller single charge.

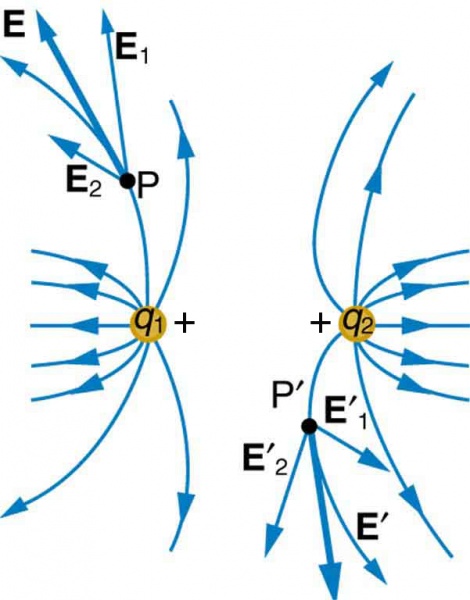

Figure 4 Two positive point charges \(q_{1}\) and \(q_{2}\) produce the resultant electric field shown. The field is calculated at representative points and then smooth field lines drawn following the rules outlined in the text.

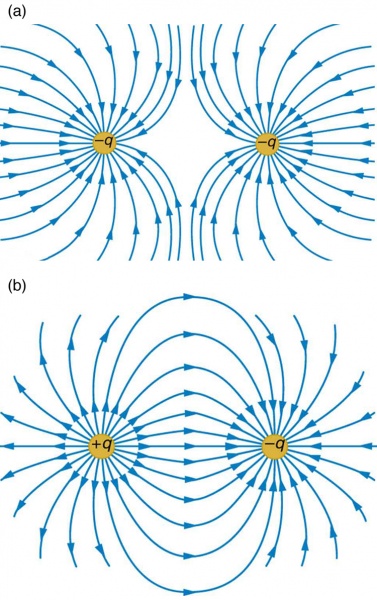

Figure 5 (a) Two negative charges produce the fields shown. It is very similar to the field produced by two positive charges, except that the directions are reversed. The field is clearly weaker between the charges. The individual forces on a test charge in that region are in opposite directions. (b) Two opposite charges produce the field shown, which is stronger in the region between the charges.
We use electric field lines to visualize and analyze electric fields (the lines are a pictorial tool, not a physical entity in themselves). The properties of electric field lines for any charge distribution can be summarized as follows:
The last property means that the field is unique at any point. The field line represents the direction of the field; so if they crossed, the field would have two directions at that location (an impossibility if the field is unique).
Move point charges around on the playing field and then view the electric field, voltages, equipotential lines, and more. It's colorful, it's dynamic, it's free.
Click here to view the simulation page
Compare and contrast the Coulomb force field and the electric field. To do this, make a list of five properties for the Coulomb force field analogous to the five properties listed for electric field lines. Compare each item in your list of Coulomb force field properties with those of the electric field—are they the same or different? (For example, electric field lines cannot cross. Is the same true for Coulomb field lines?)

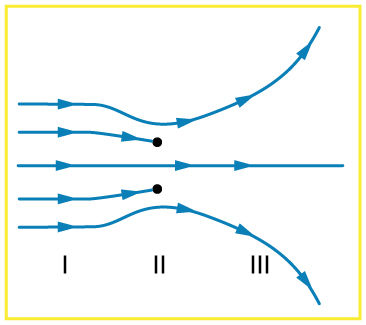

The figure below shows an electric field extending over three regions, labeled I, II, and III. Answer the following questions.
Are there any isolated charges? If so, in what region and what are their signs?
Where is the field strongest?
Where is it weakest?
Where is the field the most uniform?
Sketch the electric field lines near a point charge \(+q\).
Do the same for a point charge \(-3.00q\).

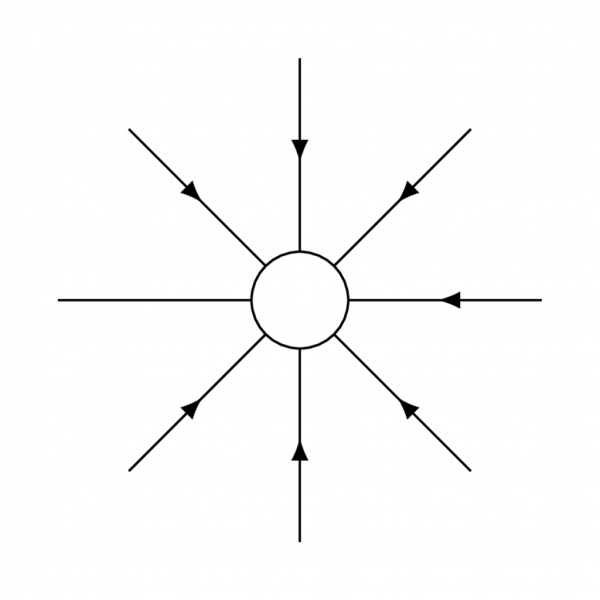

What type of charge do the following electric fields belong?
Identify the charge of the spheres A and B as shown in the figure below.
Identify the punctual charge in the diagram below.
An electric dipole (with +2q and –2q as the two charges) is shown in the figure above. A third charge, −q is placed equidistant from the dipole charges. What will be the direction of the net force on the third charge?
